Packaging Engineering Solutions
Factory-integrated packaging structural engineering, custom dielines, drop-tested protective cushioning, container loading optimization, and retail graphic integration.
What Packaging Development We Provide
Structural Engineering & Dielines
- Existing Box Redesign: Resize dimensions, add clear PET viewing windows, snap locks, or swap inserts.
- Bespoke Box Styles: Tuck cartons, rigid magnetic gift boxes, lid-and-base boxes, book-style cases, and kraft mailers.
- Protective Inserts: Custom-contoured molded paper pulp trays, laser-cut high-density EVA, and thermoformed blister trays.
- Master Shippers: 5-ply / 7-ply heavy-duty BC flute corrugated export cartons with corner board reinforcement.
Packaging Graphic & Artwork Design
- Layout Engineering: Multi-panel print typography, brand colorways, and vector iconography matched to dieline bleeds.
- Retail Compliance: Scannable UPC / EAN-13 barcodes, Amazon FNSKU labels, and multi-language consumer warning copy.
- Collateral Extension: Retail hangtags, kraft sealing belly bands, product manual booklets, and security seal stickers.
Physical Testing & Premium Craft
- Two-Stage Prototyping: Unprinted structural white dummy → full-color digital or offset press proof samples.
- Transit Testing: ISTA-1A / ASTM drop test verification (1.2m drop) and stack compression box strength tests (BCT).
- Surface Craft: Matte / gloss lamination, anti-scratch soft-touch film, spot UV, gold foil stamping, and debossing.
Production Deliverables Checklist
Structural CAD Dieline
1:1 vector dieline blueprint (DXF, EPS, PDF) with precise cutting lines, score creases, and glue flap tolerances.
Print-Ready Artwork File
Layered Adobe Illustrator (AI / PDF) master file with 3mm bleed margin, CMYK color profiles, and outlined typography.
3D Packaging Rendering
High-resolution 3D virtual packshot renders showcasing fold geometries, window transparency, and retail shelf presence.
Material & Craft Spec Sheet
Paperboard weight (GSM), flute type (E/B/BE), lamination thickness, Pantone ink codes, and finishing technique notes.
Packing & CBM Calculation
Master carton dimensions, gross/net weight (GW/NW), units per carton, and total CBM optimization for container shipping.
Physical Dummy & Color Proof
Unprinted laser-cut white structural dummy for fit verification, followed by a color proof box before mass press run.
Packaging Engineering Photo Cases

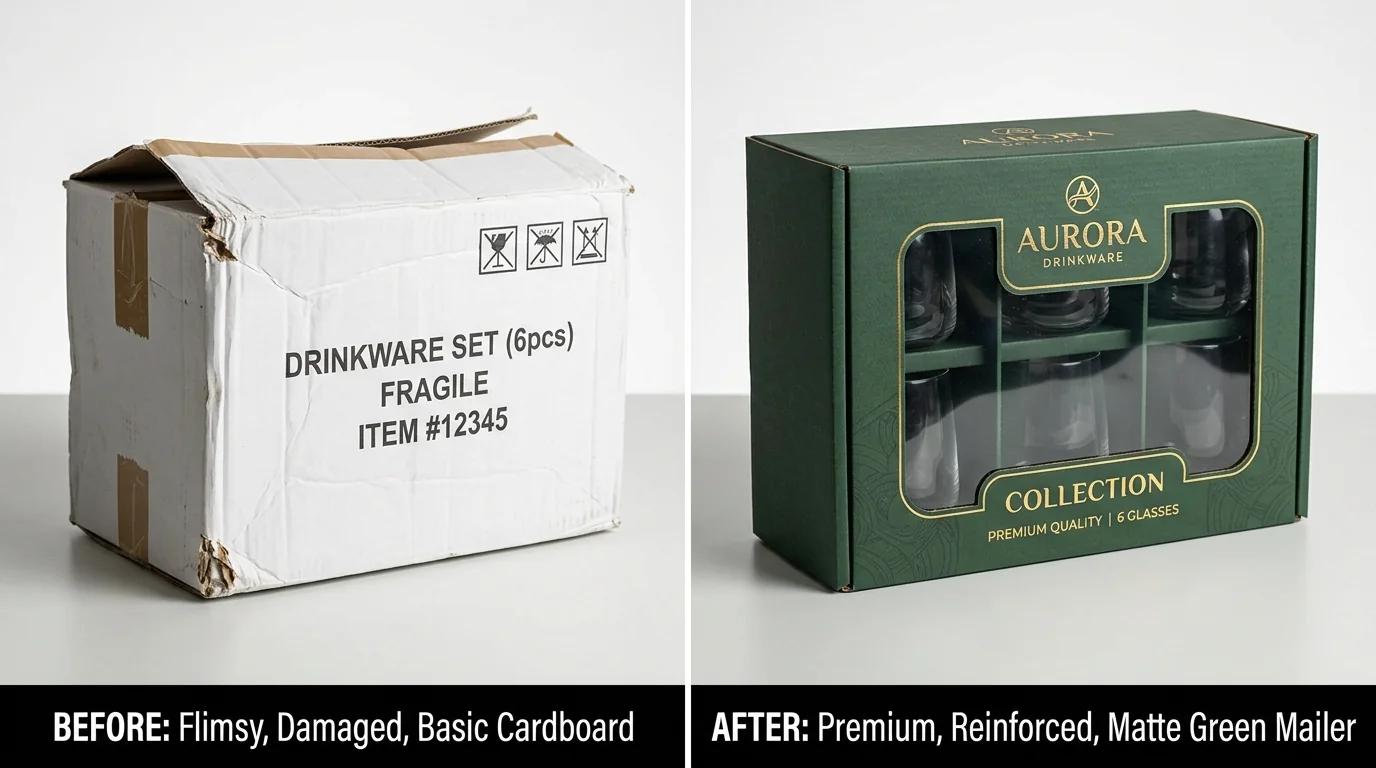

Flimsy Generic Box → Reinforced Retail Mailer
- Before Thin single-wall card box with crushed edges and uninspired generic text.
- After Heavy-duty micro-flute corrugated mailer in matte forest green, reinforced corners, clear viewing window, and gold hot stamping.

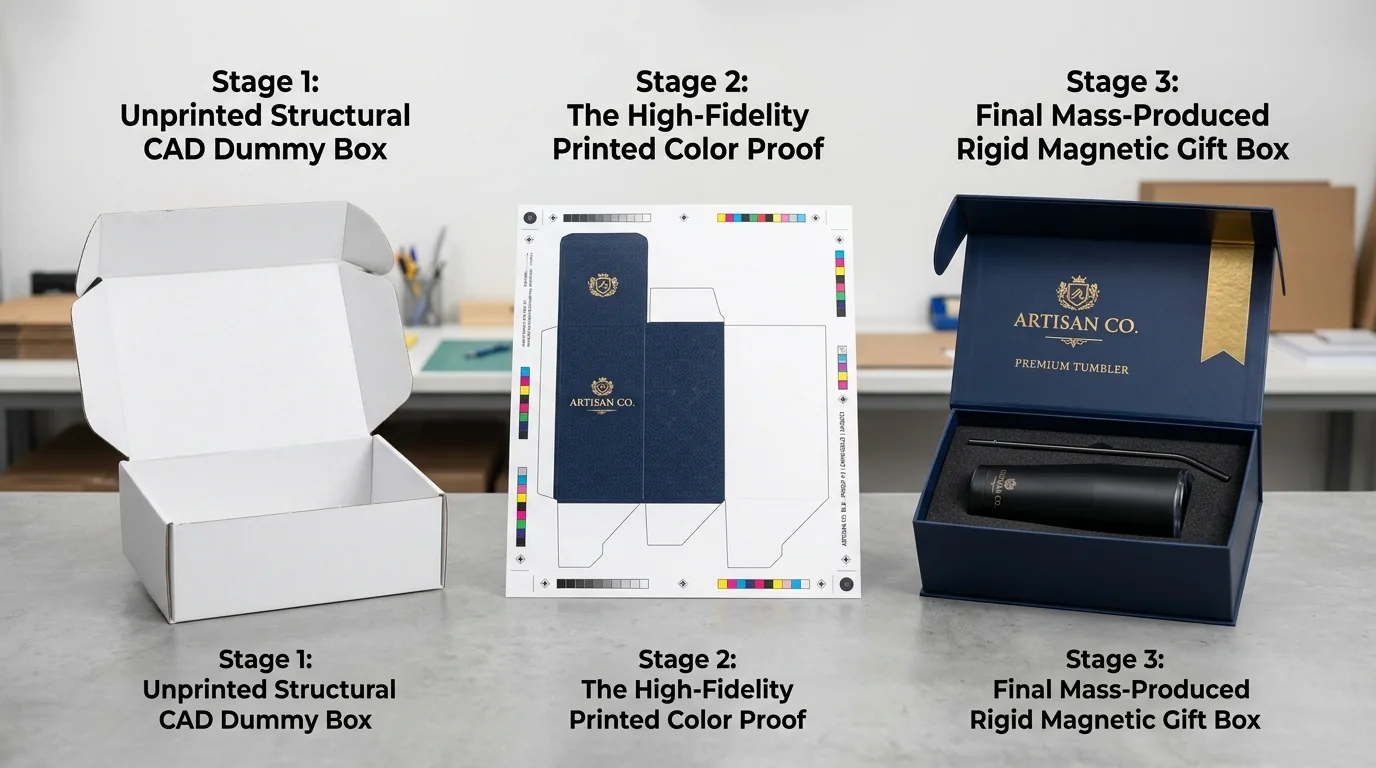

White Dummy → Color Proof → Rigid Gift Box
- Stage 1 Unprinted CAD white dummy tested physically with drinkware for exact friction fit.
- Stage 2 Flat sheet color proof verifying CMYK color density, dieline bleeds, and gold foil alignment.
- Stage 3 Final mass-produced navy blue magnetic rigid box with custom foam insert and metallic tumbler.

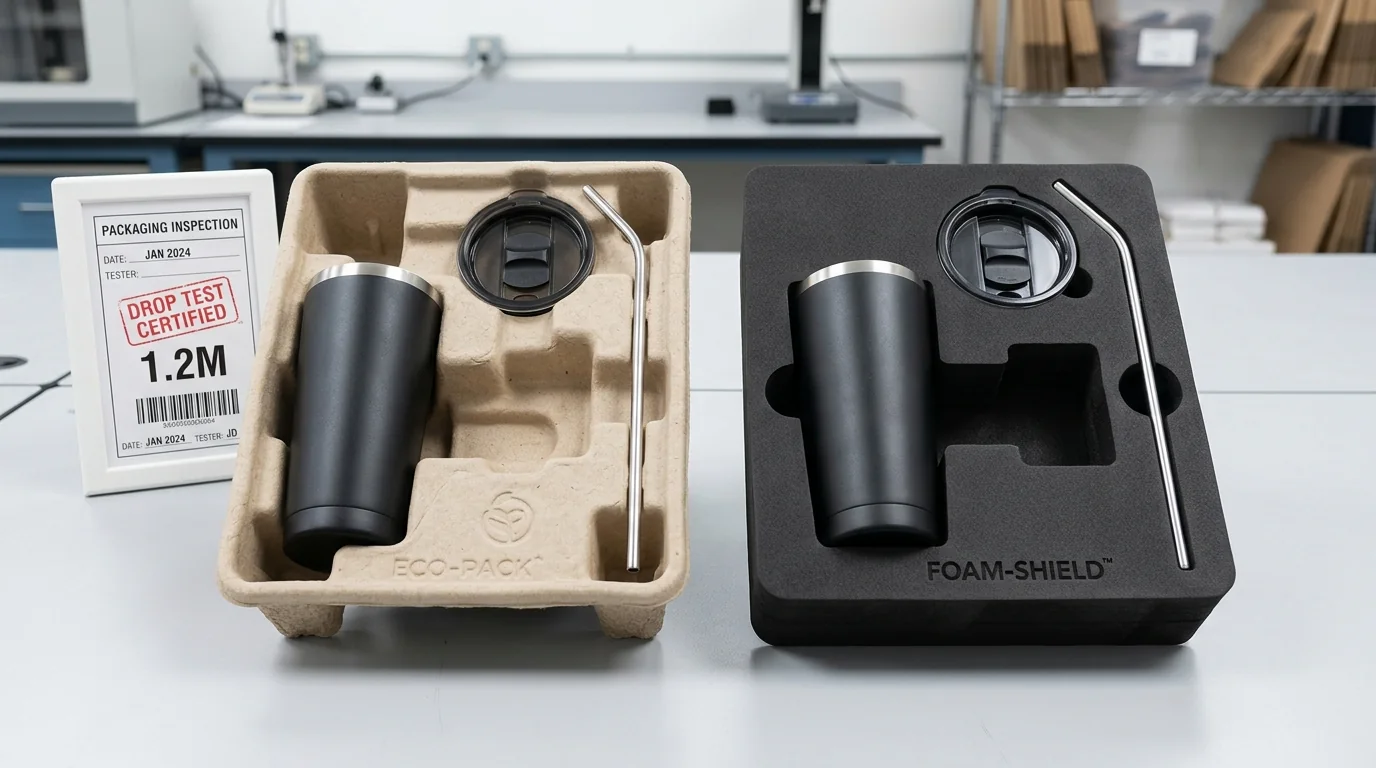

Precision Molded Pulp vs. High-Density EVA Foam
- Eco Option Biodegradable molded sugarcane pulp tray with custom contoured recesses for tumbler, lid, and straw.
- Luxury Option Laser-milled velvet-flocked dense EVA foam cradle providing high-impact kinetic shock absorption.
End-to-End Packaging Workflow
Brief & Specs
Structural CAD
3D Simulation
White Dummy
Graphic Layout
Color Proof
Sample Sign-Off
Steel Die Cut
Mass Printing
✔ Route A: Existing Catalog Dielines
Zero Tooling Cost · Fast Sampling: Choose from our library of 150+ verified open box dielines. Modify dimensions slightly or update graphic artworks directly. No die-cut mold fees and fast 2–3 day proof turnaround.
★ Route B: Bespoke Structural Tooling
100% Exclusive Geometry · Refundable: Custom box shapes, magnetic closures, or special folding tabs. High-precision laser steel die tooling ($80–$150) built in 2–3 days. Tooling fee is 100% credited back on bulk container order.
Commercial Specifications & Carton Logistics
Tooling & Die-Cut Fees
- Existing Dieline: $0 Free Tooling Fee
- New Custom Box Die: $80 – $150 / set
- Rigid Gift Box Molds: $150 – $250 / set
- 100% Refundable: Credited upon bulk order placement
Minimum Order Quantity
- Folding Tuck Cartons: 1,000 pcs (multi-SKU batching)
- Rigid Magnetic Boxes: 500 pcs
- Kraft Mailers + Label: 300 pcs low trial MOQ
- Outer Export Cartons: Aligned with product order run
Development Turnaround
- CAD Dieline Setup: 1 – 2 Business Days
- White Dummy Cutting: 2 – 3 Business Days
- Color Offset Proof: 3 – 5 Business Days
- Mass Packaging Run: 10 – 14 Days (synchronized with goods)
Revision & Engineering Policy
- Free Structural Tweaks: 3 Complete Iterations
- Artwork Proof Revisions: Free copy & barcode adjustments
- Pre-Production Fit: 100% guaranteed product clearance
IP & Exclusive Tooling Rights
- 100% Buyer Ownership: Full rights to all CAD & art files
- Exclusive Mold Custody: Bespoke dies dedicated to your brand
- Confidentiality: Protected under formal NDA
International Market Compliance
- EU Packaging Act (EPR): Triman recycling logo & PAP-20/21
- North America: Prop 65 warning & FDA paper compliance
- Sustainability: FSC-certified recycled kraft board options

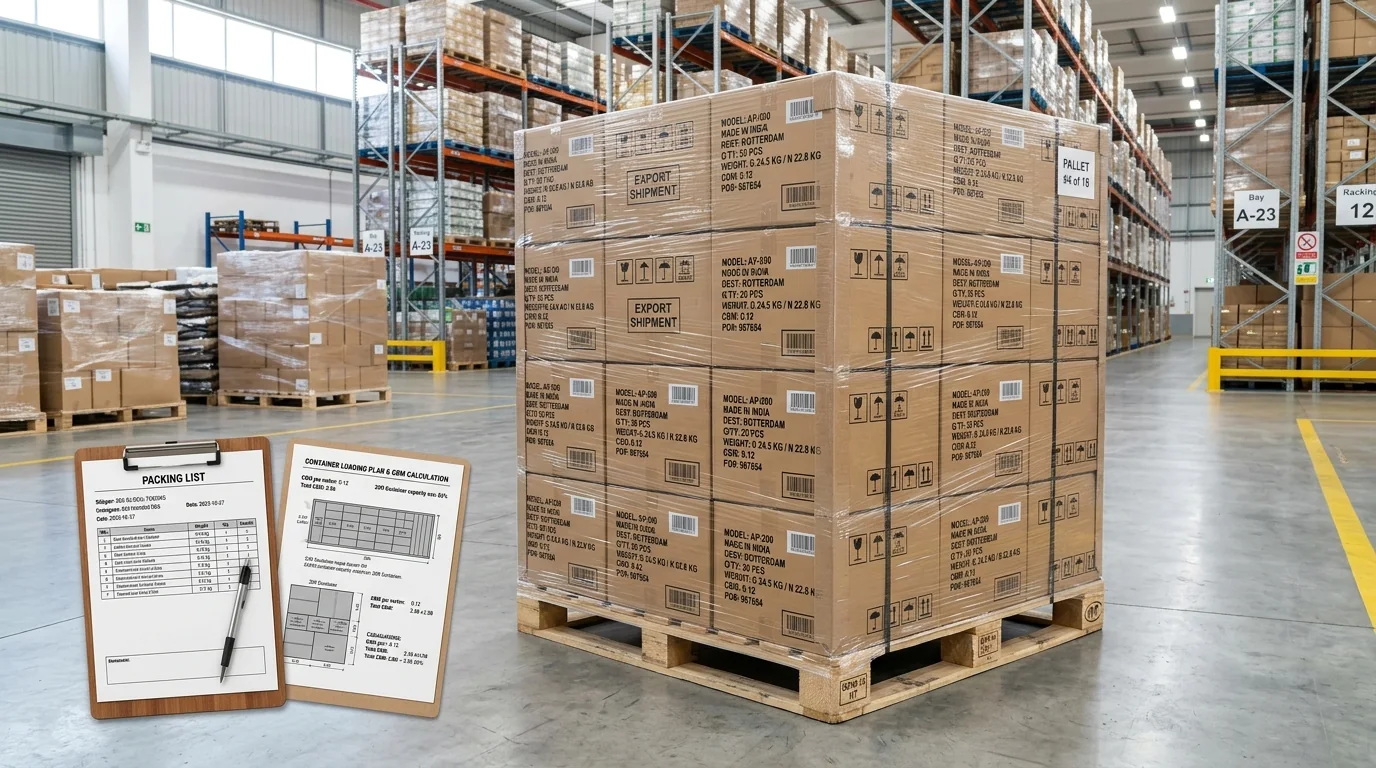

Freight-Optimized Carton Engineering (CBM Optimization)
- Carton Geometry: Custom sized to eliminate void spaces inside the outer carton, preventing box collapse under vertical pressure.
- Pallet Cross-Tying: Box dimensions calibrated to match standard European (1200x800mm) and US (48x40in) pallets without overhang.
- CBM Maximization: Every millimeter optimized so you fit maximum unit density into 20GP, 40GP, or 40HQ ocean containers, directly lowering your per-unit landed freight cost.
Ready to Engineer Your Custom Packaging?
Send us your product sample dimensions or packaging reference. Our packaging structural engineers will supply a 1:1 CAD dieline and cost breakdown within 24 hours.
